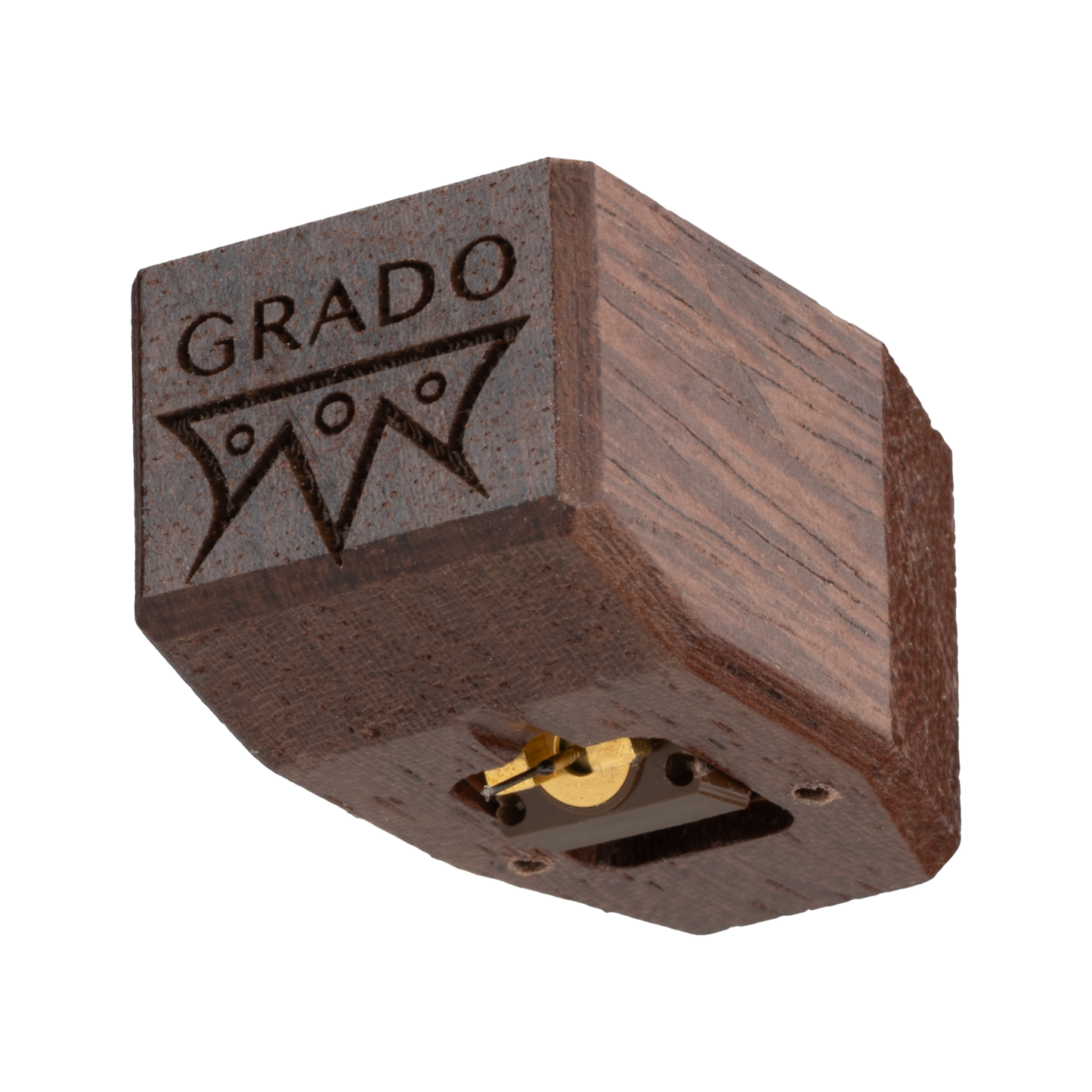

  • Close up photo of a Lineage Series Cartridge which is wooden and has the words GRADO and a symbol that resembles an upside down crown engraved in it.
1 1
Photo of a lineage series cartridge being used on a blue disc.

Aeon4

Aeon4

$4,995.00
$4,995.00
OFF Sold out
Shipping calculated at checkout.

Type:

Cartridges

Many in Stock

This is a special order item and may not be cancelled or returned.
View full details
Let us know abour your query!
Description
Specs
Reviews
  • Body - Brazilian Ebony Wood
  • Cantilever - Sapphire/Shibata Diamond
  • Output - 1.0mV @ 5 CMV (45 degrees)
  • Controlled Frequency Response - 5 Hz - 70 KHz
  • Channel Separation - Avg. 35db, 10-30K Hz
  • Input Load - 10-47k ohms
  • Inductance - 8mH
  • Resistance - 74 ohms
  • Cartridge Weight - 10.5 grams
  • Tracking Force - 1.6-1.9 grams
  • Compliance - 20 μm/mN

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Allen Dodge
Grado Aeon 4 is Fantastic

The Grado Aeon 4 is the best sounding cartridge I have heard and I have had dozens of cartridges over the years. Currently, I have 8 cartridges, including some much more expensive (e.g. Koetsu Blue Lace Platinum). The Grado Aeon 4 is the most musically natural, with the most open soundstage and well defined images.

Let us know abour your query!

Aeon4 sits within the Grado Lineage Series as a direct expression of the design principles that define the line. Developed through decades of cartridge refinement, it delivers a highly resolved and controlled presentation while maintaining the musical balance that defines Grado cartridges.

Built around Grado’s patented moving iron flux-bridger system, Aeon4 brings together speed, stability, and tonal density in a design intended for systems that demand both precision and musicality.

Offered in both stereo and mono configurations, Aeon4 continues the evolution of Grado’s wood body cartridges.

Performance

Aeon4 is a low output moving iron cartridge designed for use with high-gain phono stages.

Its presentation is defined by clarity, control, and balance. Detail is presented with precision while maintaining a smooth and composed top end. The midrange carries natural weight and presence, and low frequencies are delivered with definition and authority.

Complex passages are resolved cleanly, with strong separation and stable imaging. The overall presentation remains composed and coherent, allowing the structure and character of the recording to come through.

Photo of lineage series cartridge being used on a black record in front of a brick wall.
eing used to play a record in front of a black background.

Flux-Bridger Moving Iron Design

All Grado cartridges utilize a moving iron design built on Joseph Grado’s patented flux-bridger principle.

This approach allows the cartridge to generate a precise signal with extremely low moving mass, while keeping the coil structure fixed. The result is a presentation that combines speed, control, and harmonic integrity without the fragility often associated with traditional moving coil systems.

The design also ensures long-term consistency, maintaining performance over time without degradation of the internal signal path.



Diamond & Cantilever

Aeon4 features a nude Shibata diamond mounted to a sapphire cantilever.

The Shibata profile is highly effective at retrieving detail from the groove, offering exceptional contact and resolution while maintaining a natural, unforced presentation. Paired with a sapphire cantilever—known for its rigidity and resistance to deformation—the system delivers clarity, extension, and stability across the frequency range.



Photo of a lineage series cartridge being used to play a record on a black background.
Photo of a lineage series cartridge being used to play a record on a silver turntable that is sitting on a black desk in front of a white background.

Coil & Internal Structure

The internal signal path is built using ultra-high purity 7N OCC copper, selected for its conductivity and consistency.

Each cartridge undergoes cryogenic treatment during both component preparation and final assembly, helping to stabilize materials and optimize performance.

The internal structure is carefully damped to reduce unwanted resonance and vibration, allowing the cartridge to extract information from the groove with minimal interference. The result is a signal that remains coherent, balanced, and dynamically responsive.



Housing

The Aeon4 is housed in a Brazilian Ebony wood body.

Beyond its visual presence, the wood plays a role in controlling resonance and contributing to the cartridge’s tonal balance. The structure has been refined to reduce mass while improving compatibility across a wider range of tonearms.

The form also improves visibility of the cantilever during setup, allowing for more precise alignment.

Photo of a lineage series cartridge playing a black record on a silver turntable that is on a black table in front of a white background.

Wood Cartridge Upgrade Program

Grado wood body cartridges are supported through our Wood Cartridge Upgrade Program.

This program allows you to move from your current Grado wood cartridge to another model, with a pricing accommodation provided through the program. The program applies exclusively to Grado wood body cartridges, and pricing is based on the model being purchased.

For details and current pricing, please contact us and state the model you are interested in purchasing.
